1. Rear fog light bulb socket; 2. Rear fog light bulb; 3. Rear fog lamp housing.
Removal and installation
Attention. Disconnect the cable from the negative terminal of the battery or remove the power fuse.
Removal
1. Unscrew the rear fog lamp mounting brackets.
2. Insert a suitable tool into the gap between the rear fog lamp and the rear bumper cornice and remove the lamp.
3. Disconnect the connector from the rear fog lamp.
Installation
Installation is carried out in the reverse order of removal.
Replacing light bulbs
Attention. Disconnect the cable from the negative terminal of the battery or remove the power fuse.
Rear fog light bulb

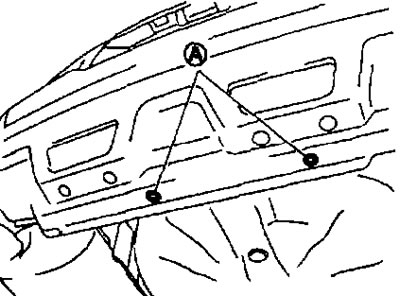

1. Remove the clamps (A).
2. To gain access, press the rear bumper cornice.

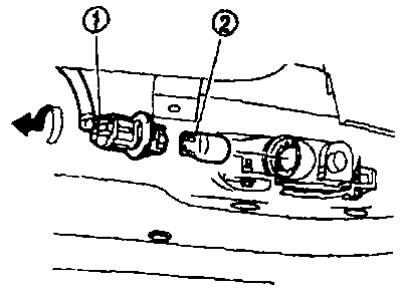

3. Turn the light bulb socket (1) counterclockwise and unlock it.
4. Take out the light bulb (2) from the cartridge.
