Engine QR25DE. 1. Clamp; 2. Vacuum hose; 3. Vacuum tube; 4. Clamp; 5. Vacuum hose (with built-in stop valve); A. To the intake manifold; B. To the brake booster; C. Paint mark; D. Marking indicating the direction towards the engine.
Removal and installation
Removal
Remove the vacuum hoses and tubes.
Installation
Install vacuum hoses and tubes.
Attention:
- Since there is a stop valve built into the vacuum hose, it must be installed in the required direction. Follow the labeling. If the hose is not connected correctly, the normal operation of the brake booster will be impaired.
- Insert the vacuum hose to a depth of at least 24 mm (A).
- Do not use lubricating oil during assembly.
- When connecting a vacuum hose, insert with the mark facing up.
- When connecting the vacuum hose (with built-in stop valve) Insert the marking on the front side of the car.
Check after removal
Visual inspection
Check that assembly is correct and there is no damage or wear.
Checking the tightness of the stop valve

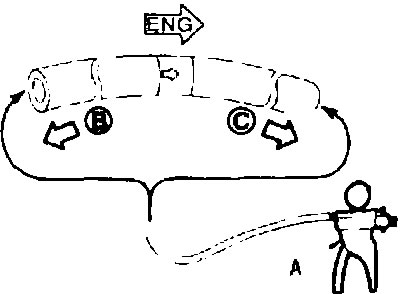

- Perform the test using a hand vacuum pump (A).
When connecting from the amplifier side (IN) the vacuum reduction should be about 1.3 kPa (10 mmHg) for 15 seconds at -66.7 kPa vacuum (-500 mmHg). When connecting on the motor side (WITH): There should be no vacuum.
