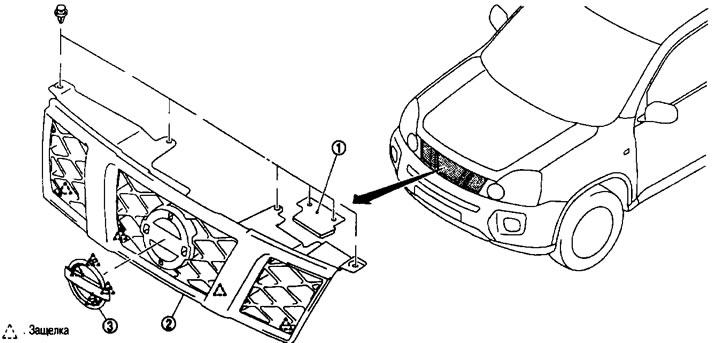

Radiator grille. 1. Radiator grille spacer; 2. Radiator grille; 3. Front emblem.
Removal and installation
Removal
1. Open the hood completely.
2. Remove the mounting clips from the radiator grille spacer and remove the spacer.
3. Remove the upper mounting clips from the radiator grille.
4. Release the lower latches of the radiator grille from their engagement with the front bumper.
5. Remove the radiator grille.
6. After removing the radiator grille, remove the following components:
- front emblem.
Installation
Installation is carried out in the reverse order of removal.
